Enoki Mushroom Cultivation Container Eco

1. Product Overview

The commercial quality of enoki depends on straight, pale stipes with unopened caps, which requires low temperature, high humidity, moderately elevated CO2 and low light simultaneously. This model combines a low-temperature unit and ultrasonic fogging with adjustable CO2 and a dark-light mode to reproduce that combination reliably.

 2. Key Advantages

• Low-temperature unit designed for continuous operation between 8 and 15 degC with a favourable energy ratio

• Ultrasonic fogging produces fine droplets, so fruiting bodies are never wetted directly

• Adjustable CO2 between 800 and 2000 ppm to shape straight stipes

• Dark and low-light modes that prevent pigmentation and preserve a clean white appearance

3. Technical Specifications

项目 / Item	参数 / Specification
型号 / Model	HVC-M6D
外形尺寸 / Dimensions	12000 × 2438 × 2896 mm（40 尺标准箱）  /  12000 x 2438 x 2896 mm (40 ft ISO container)
有效栽培面积 / Effective cultivation area	45–55 m²  /  45-55 m2
层架配置 / Rack configuration	4 层不锈钢出菇架，层距可调  /  4-tier stainless steel growing racks with adjustable shelf pitch
温度控制范围 / Temperature range	8-15 ℃ (±0.5 ℃)  /  8-15 degC (+/-0.5 degC)
相对湿度 / Relative humidity	85-95% RH
CO₂ 浓度 / CO₂ concentration	800-2000 ppm
光照 / Lighting	0-100 lux（可调 / adjustable）
栽培周期 / Cultivation cycle	30–45 天  /  30-45 days
装机功率 / Installed power	8–11 kW（同产能下运行功率更低）  /  8-11 kW (lower running power at equal output)
电源 / Power supply	380 V / 50 Hz 三相（可按目的国电压定制）  /  380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value	≤0.28 W/(m²·K)，配显热回收（效率 ≥60%）  /  <= 0.28 W/(m2.K) with sensible heat recovery (efficiency >= 60%)
控制系统 / Control system	PLC + 触摸屏 + 远程监控 + 能耗看板  /  PLC, touch panel, remote monitoring and an energy dashboard
主栽品种 / Primary species	金针菇（Flammulina filiformis）  /  Enoki Mushroom (Flammulina filiformis)



4. System Configuration

Standard configuration: Low-temperature inverter unit, ultrasonic fogging system with stainless nozzles and feed lines, CO2 regulation module, blackout lining with low-light LEDs, multi-tier bottle or bag racks, fresh-air heat exchange and filtration, and an intelligent control cabinet.

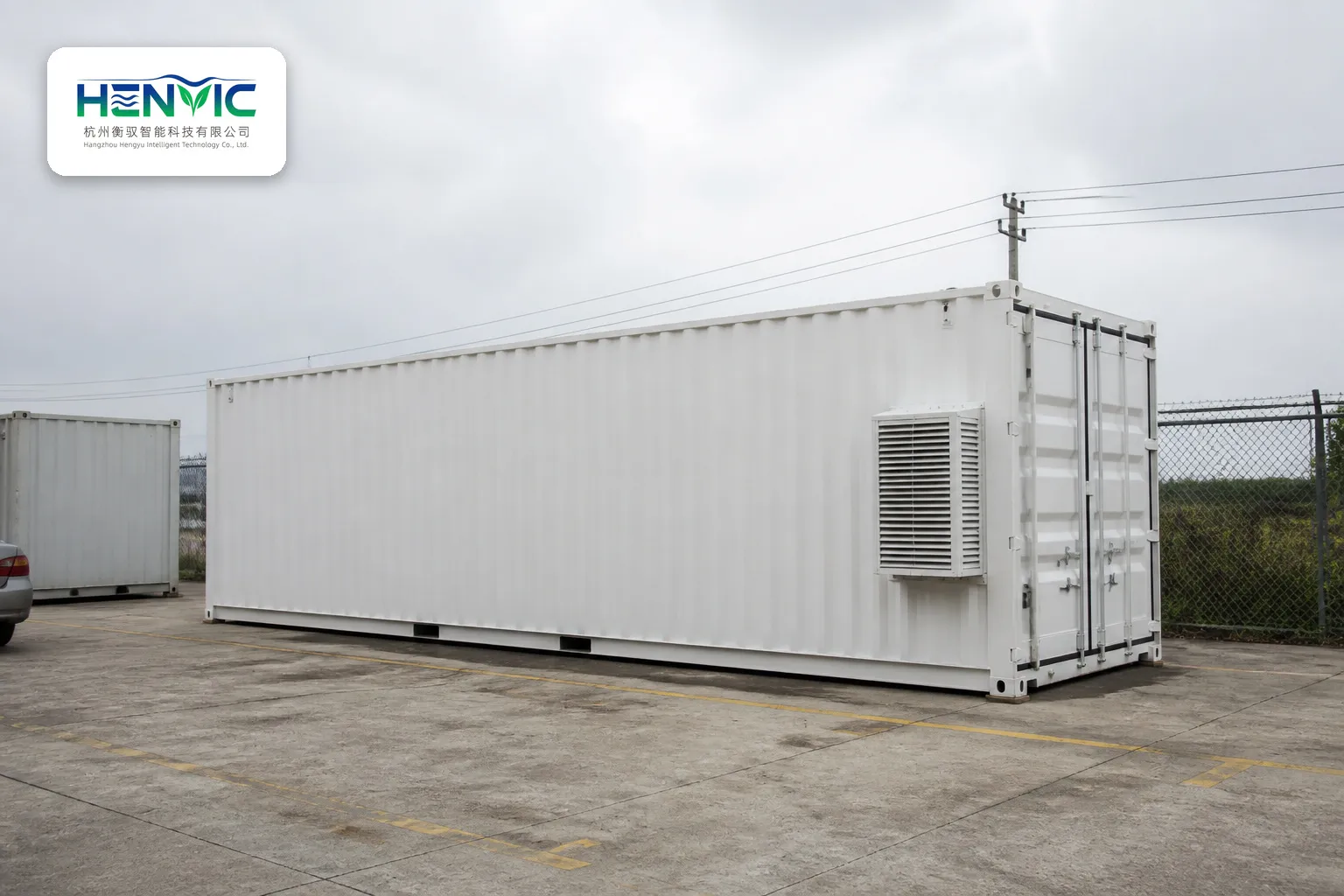

Enclosure and integration: 12000 x 2438 x 2896 mm (40 ft ISO container); racks: 4-tier stainless steel growing racks with adjustable shelf pitch; control: PLC, touch panel, remote monitoring and an energy dashboard.

5. Suitable Species

Primary species: Enoki Mushroom (Flammulina filiformis). Cultivation method: bottle or bag culture (industrial). A companion dark primordia room is recommended; move trays into this unit after induction for the inhibition and elongation stages.

6. Application Scenarios

Industrial enoki production lines, mushroom cooperatives, and premium fresh-mushroom supply bases. This is the Eco configuration; High-insulation envelope plus heat recovery for markedly lower lifetime energy cost.

 7. Delivery & Installation

• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 96-hour continuous operation test, with a test record supplied with the shipment.

• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.

• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 4 working days.

• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.

8. After-Sales Service

• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.

• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.

• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).

• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.

• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
